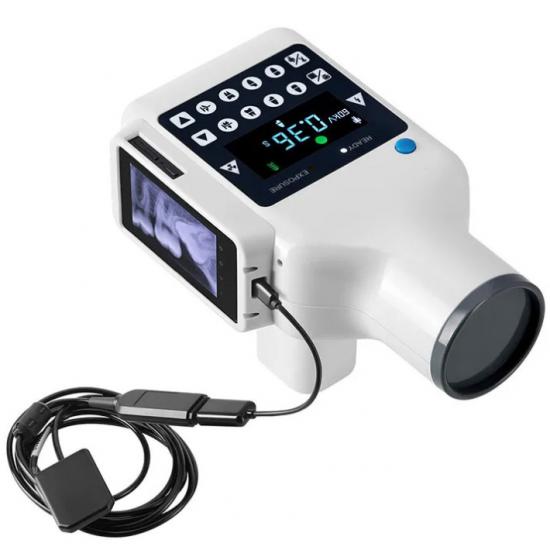

Cyfrowy przenośny system rentgenowski do stomatologii z zestawem czujników wewnątrzustnych
Cyfrowy przenośny system rentgenowski do stomatologii z zestawem czujników wewnątrzustnych
Features:

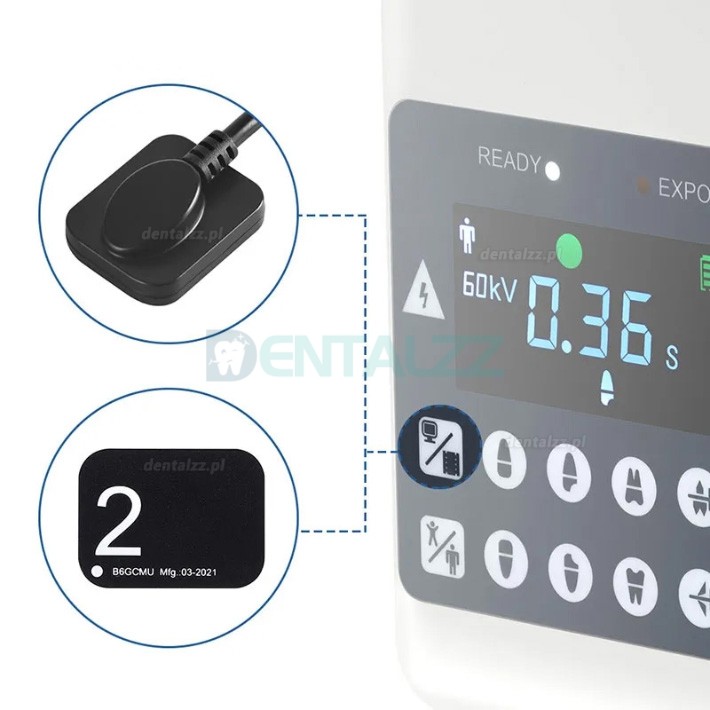

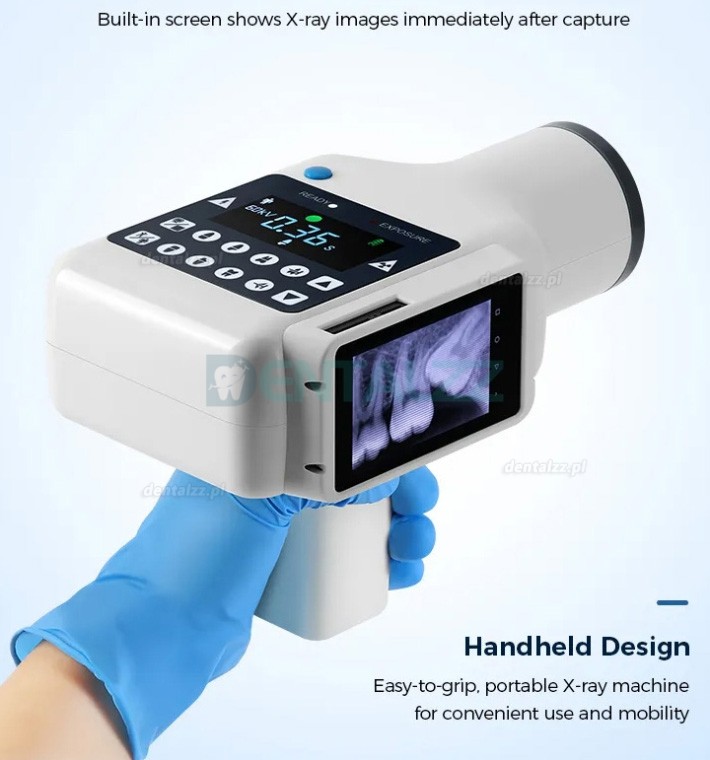

Quick Image Display: X-ray images appear immediately on the built-in screen when connected to sensors.

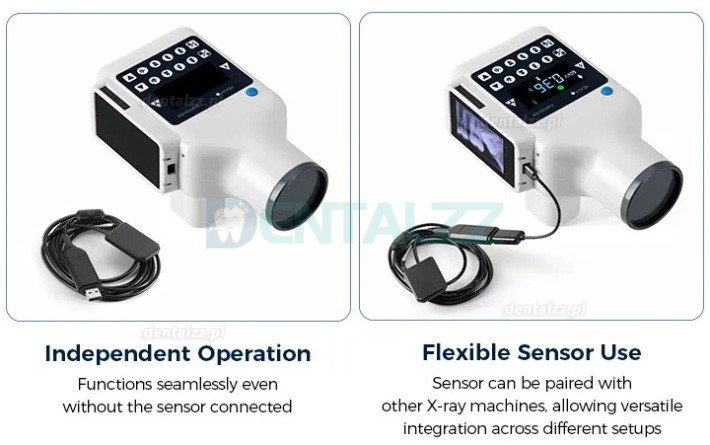

Independent Operation: Works without the sensor and supports digital sensors, X-ray films, and image plate scanners.
Flexible Sensor Use: Can be paired with other X-ray machines for versatile integration.
Enhanced Workflow: Streamlined design increases operational efficiency.

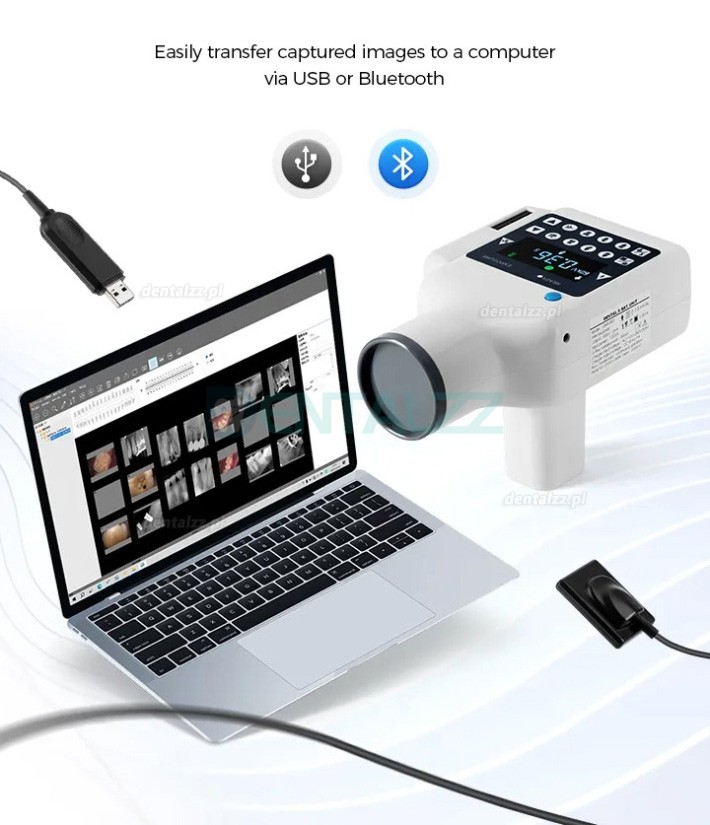

Convenient Image Transfer: Easily transfer images to a computer via USB or Bluetooth.
Sensor Options: Choose from two sensor models to fit different requirements.

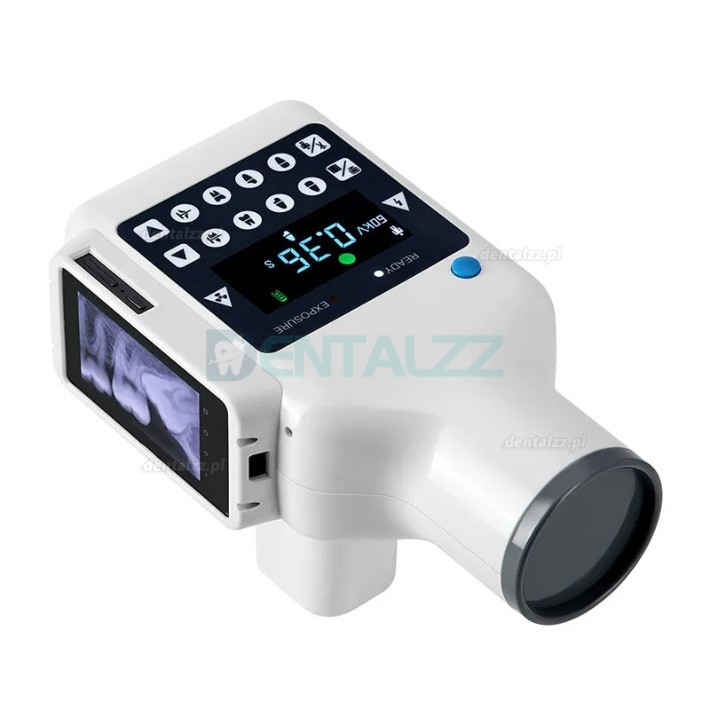

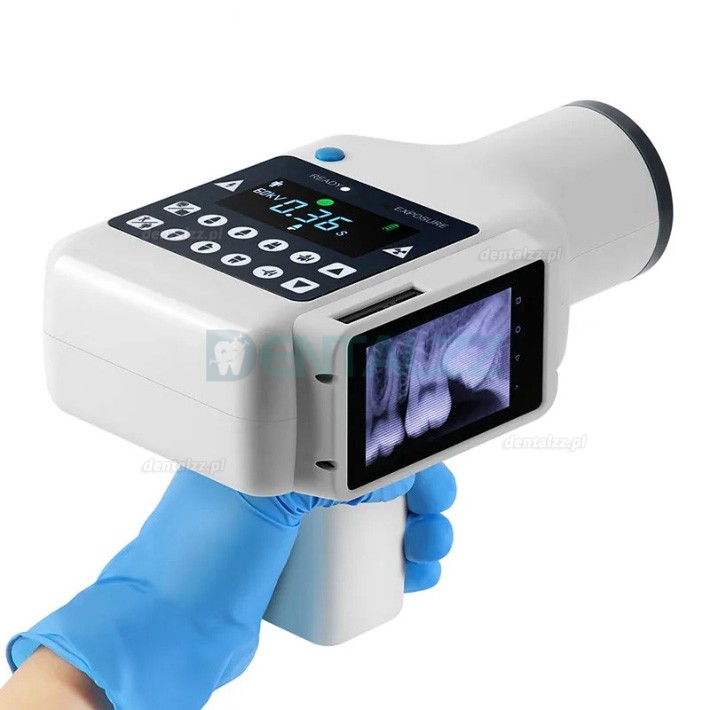

Handheld Design: Compact and lightweight for easy handling and portability.
Low Radiation Leakage: Radiation leakage is less than 20μGy/h.
High Resolution Image: High resolution imaging with portable storage to save space.
Power Supply: Uses high-frequency DC international power supply.
Durable Components: All components are concentrated in a shock-resistant, insulated vacuum-sealed design.

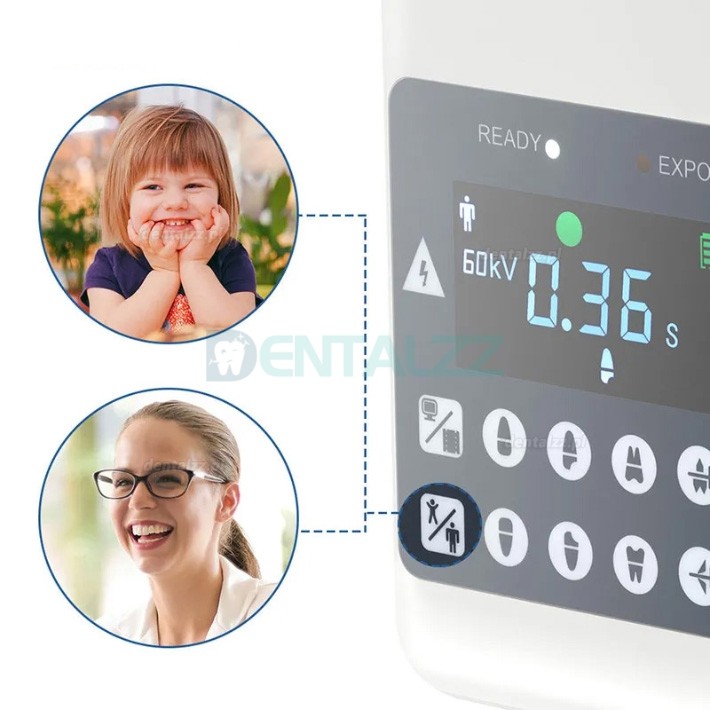

Preset Exposure Times: Exposure times are preset for both adults and children.
Long Battery Life: Capable of capturing approximately 400 images on a full charge.
Specyfikacja | Bliższe dane |
Napięcie lampy | 60KV |
Prąd rurowy | 2mA |
Czas narażenia | 0.1-2.0s |
Częstotliwość | 30kHz |
Oceń moc | 120VA |
Odległość od skóry do stożka | 105mm |
Skupienie na rurze | 0.8mm x 0.8mm |
Bateria | DC14.8V 1600mAh |
Napięcie wejściowe ładowarki | AC100V-240V+10% |
Napięcie wyjściowe | DC16.8V |
Temperatura otoczenia | 5°C~40°C |
Wilgotność względna | <75%RH |
Parametry techniczne czujnika:
Specyfikacja | COX2230 | COX2635 |
Technologia detektora | APS CMOS | APS CMOS |
Rozmiar piksela | 18.5μm | 18.5μm |
Rozdzielczość teoretyczna | 27lp/mm | 27lp/mm |
Prawdziwe Rozdzielczość | CsI: ≥14 lp/mm | CsI: ≥14 lp/mm |
Matryca pikseli | >1200*1600 | >1402*1888 |

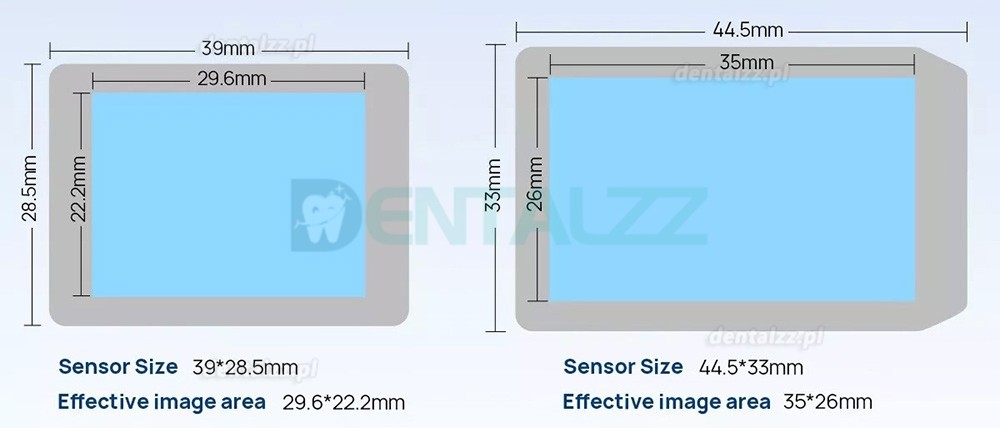

Powierzchnia czynna (mm) | >29.6 x 22.2 | >35 x 26 |
Rozmiar mechaniczny (mm) | >39 x 28.5 x 6 | >44.5 x 33.0 x 6 |
Interfejs danych | USB | USB |
Digitalizacja | 12/14/16 bit | 12/14/16 bit |
Czas obrazowania | 3-4s | 3-4s |

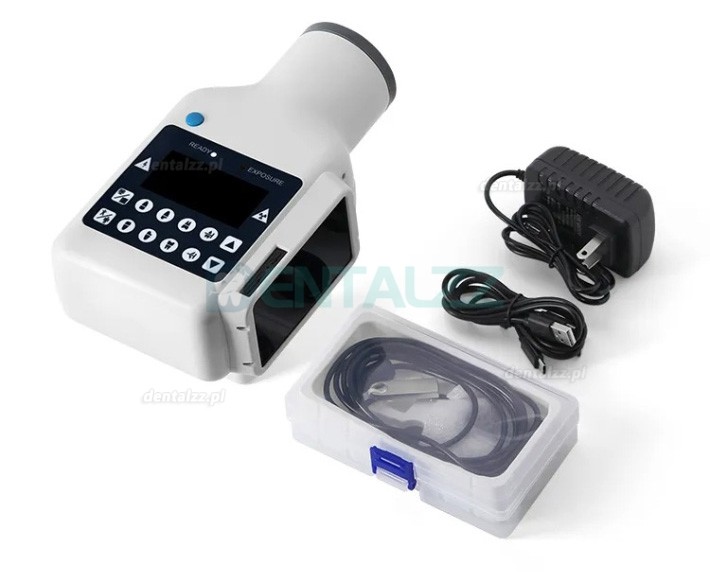

Opakowanie:
1. Aluminiowe pudełko *1
2. Aparat rentgenowski *1
3. Czujnik (z dyskiem U) *1
4. Ładowarka *1
5. Instrukcja *1
6. Kabel danych *2;
